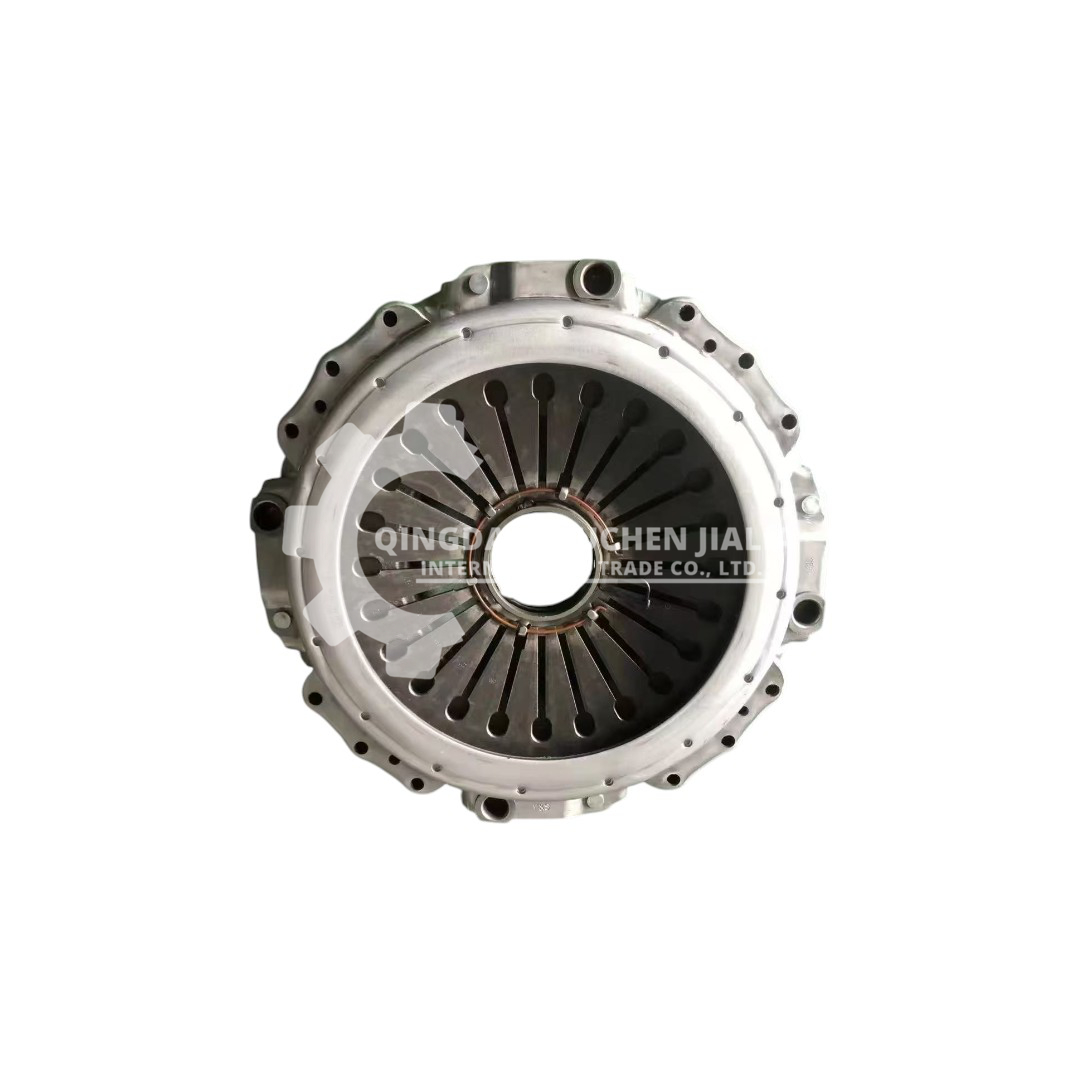

Clutch Pressure Plate 3483034042 Renault Trucks Volvo Truck Engine Parts

Select the number of specifications

Please check the product information you want!

Product Detail

Product Description: Clutch Cover Pressure Plate 3483034042 for Renault Trucks, Volvo Trucks & Construction Machinery

The Clutch Cover Assembly / Pressure Plate 3483034042 is a genuine-quality OEM replacement component specifically designed for heavy-duty trucks manufactured by Renault Trucks, Volvo Trucks, and other commercial vehicles sharing the same 430mm clutch platform. This critical component of the clutch assembly maintains the necessary clamping force for effective clutch engagement and disengagement, ensuring smooth gear transitions and optimal vehicle performance.

Technical Specifications

Parameter	Specification
Number	3483034042
Type	Clutch Cover Assembly / Pressure Plate (单碟)
Outer Diameter	430 mm (43.0 cm / 17 inches)
Type	Single-disc diaphragm spring type
Material	High-grade steel
Mounting holes	Typically 6-hole (standard heavy-duty configuration)
Pressure plate type	One-disc design
Manufacturer	SACHS (OE supplier), HUA WEI, YSD, etc.
Warranty	12 months (manufacturer warranty)
Gross weight	Approx. 39.0 kg / 85.98 lbs

Clutch Kits That Include This Pressure Plate

The following complete clutch kits incorporate the 3483034042 pressure plate as part of the assembly:

Clutch Kit Number	Components Included	Application
3400700350	Clutch cover + Driven plate + (possibly release bearing)	Volvo FH12 / Renault DXI
1878000634	Clutch disc driven plate — 430mm, 18 splines, 45mm diameter	Companion disc for 3483034042
SACHS 3483034042:009	Pressure plate only (OE equivalent)	Renault/Volvo heavy-duty trucks
