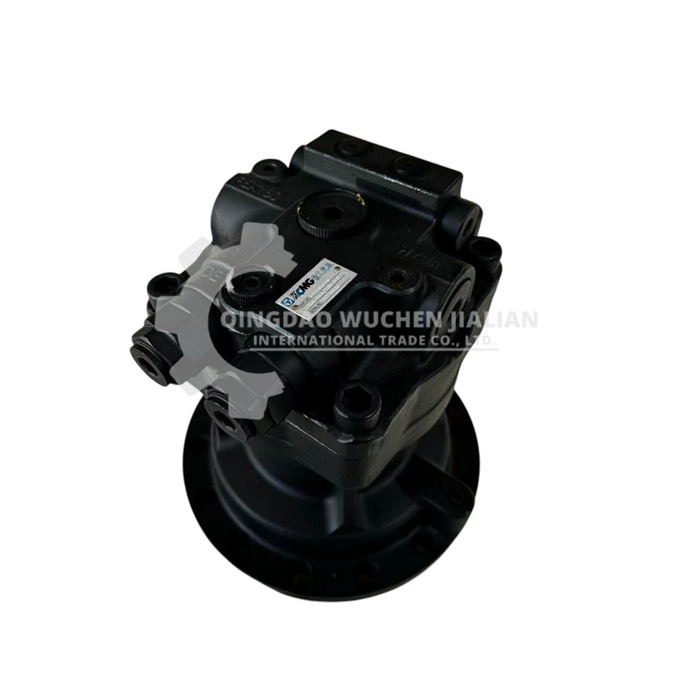

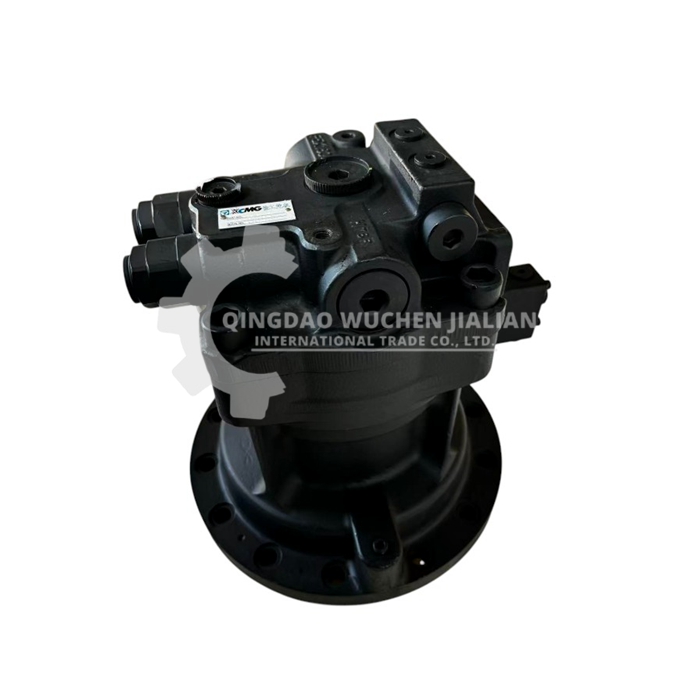

Swing Motor F5X180CHB-10A-04A280-149 XCMG EXCAVATOR
Swing Motor F5X180CHB-10A-04A280-149 XCMG EXCAVATOR
Swing Motor F5X180CHB-10A-04A280-149 XCMG EXCAVATOR
Swing Motor F5X180CHB-10A-04A280-149 XCMG EXCAVATOR
Swing Motor F5X180CHB-10A-04A280-149 XCMG EXCAVATOR

Swing Motor F5X180CHB-10A-04A280-149 XCMG EXCAVATOR

Swing Motor F5X180CHB-10A-04A280-149 XCMG EXCAVATOR

Select the number of specifications

Please check the product information you want!

Product Detail

Product Description: Swing Motor F5X180CHB-10A-04A/280-149 for XCMG Excavator

The F5X180CHB-10A-04A/280-149 Swing Motor is a high-performance axial piston hydraulic swing motor manufactured by Kawasaki Heavy Industries (Japan) and utilized as original equipment in XCMG’s popular excavator models ranging from 20 to 37 metric tons. This swing motor is the critical component responsible for providing smooth, powerful, and reliable 360-degree rotational motion to the excavator’s upper structure, including the cab, boom, arm, and bucket assembly.

Recommended Applications & Compatibility:

This swing motor is designed for XCMG excavators in the 20 to 37-ton class, including but not limited to XE205, XE215, XE235, XE200DA, XE370CA, XE370D, and XE370DK models.

1. Complete Swing Motor Assemblies

Part NumberPart Name / DescriptionApplicable XCMG Models
803090482Swing Motor AssemblyXE200DA
803007146Swing Motor AssemblyXE230, XE230C, XE250, XE260C
804000090Swing Motor AssemblyXE305D
803092903Swing Motor AssemblyXE370D, XE370DK
803093779Swing Motor AssemblyXE370CA, XE400DK
803079766Swing Motor AssemblyXE470D, XE490DK, XE500DK
819908721Swing Motor AssemblyXE470D
803008500Motor Assembly (Swing/Travel)Mid-size XCMG excavator models
800358150Swing MotorXCT80_Y


2. Swing Motor Seal Kits & Rebuild Components

Part NumberPart Name / DescriptionApplicable Models
860558551Swing Motor Seal KitXE210
803196662Seal Ring (ANELLO)F5X180
803300616Seal RingF5X180
803196338O-RingF5X180
803197150Seal Ring (ANELLO)F5X180
860119310Wear Ring / Backup RingXE360DK


3. F5X180CHB Series Variant Cross-Reference

The table below lists the OEM swing motor part numbers and their corresponding full model variant specifications for quick cross-reference.

OEM Part NumberFull Motor VariantDisplacement
803090482F5X180CHB-10A-04A/280-149-TR14-A12F180 cc/rev
803007146M5X180CHB/RG14D20A5180 cc/rev
804000090F5X180CHB-10A-10A/306-180-LR37D-1000180 cc/rev
803092903F5X180CHB-10A-06A/270-180-TR20-B08F180 cc/rev
803093779F5X180CHB (unspecified variant)180 cc/rev

4. Technical Specifications (M5X180 / F5X180 Platform)

ParameterValue / Rating
Displacement180 cc/rev
Working Pressure (Main Circuit)26.5 MPa
Input Flow300 L/min (nominal)
Output Speed1,670 rpm
Output Shaft Configuration14-tooth spline gear (TR14)
Brake TypeSpring-applied, hydraulically-released (integrated parking brake)
Valve IntegrationCrossover relief valves, makeup (anti-cavitation) valve
Mounting TypeFlange-mounted
Weight Range100 – 450 kg (varies by model)

5. XCMG Parts Number Decoding Reference

XCMG part numbers follow a standardized coding system that can provide insight into component type and series. For example, the number 860112508 on a swing motor decodes as:

  • ’86’: XCMG excavator series
  • ’01’: Rotary drive group
